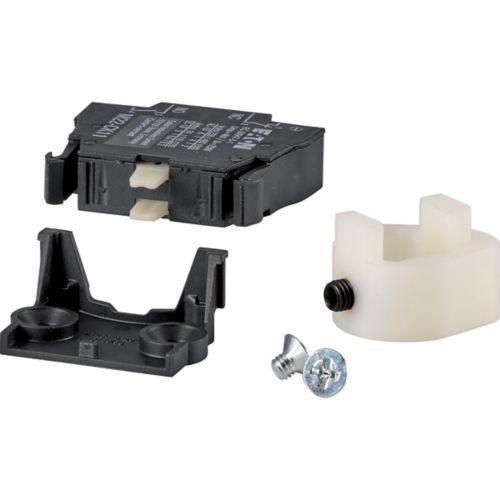

AUX1NO+1NC-BOX3 Sigortasız Yük Ayırıcı Aksesuarı: Yardımcı Kontak

Şalt Ürünler / Eaton / Kompakt Devre Kesiciler (MCCB)

AUX1NO+1NC-BOX3 Sigortasız Yük Ayırıcı Aksesuarı: Yardımcı Kontak 1NA+1NK (DDC800…1250 için)

Ürün Kodu : Y8-6101137

..: Stokta Mevcut :..

41,79 €

Favorilerime Ekle

Ürün Açıklaması

Y8-6101137 - AUX1NO+1NC-BOX3 Sigortasız Yük Ayırıcı Aksesuarı: Yardımcı Kontak 1NA+1NK (DDC800…1250 için)


Barkod	:	Y8-6101137
Oem	:	Y8-6101137
MPN	:	6101137

SKU	6101137 Model Kodu: AUX1NO+1NC-BOX3
descriptionLabel	Eaton Auxiliary contact, 1 N/O + 1N/C, for DDC + QSA, Box3
General specifications
	Product Name	Eaton Accessory Auxiliary contact
	Catalog Number	6101137
	EAN	8711426214880
	Product Length/Depth	50 mm
	Product Height	5 mm
	Product Width	50 mm
	Product Weight	0.1 kg
	Compliances	CE
	Catalog Notes	Switching duty 6 A, 230 V AC
	Model Code	AUX1NO+1NC-BOX3
Ürün teknik özellikleri
	Type	Auxiliary contact
	Accessories	Connection materials included with supplied equipment.
	10.10 Temperature rise	Not applicable.
	10.11 Short-circuit rating	Not applicable.
	10.12 Electromagnetic compatibility	Not applicable.
	10.13 Mechanical function	Not applicable.
	10.2.2 Corrosion resistance	Meets the product standard's requirements.
	10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
	10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
	10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
	10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard's requirements.
	10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.7 Inscriptions	Meets the product standard's requirements.
	10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
	10.4 Clearances and creepage distances	Meets the product standard's requirements.
	10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
	10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
	10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
	10.8 Connections for external conductors	Is the panel builder's responsibility.
	10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
	10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
	10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
	Electric connection type	Screw connection
	Ambient operating temperature - max	50 °C
	Ambient operating temperature - min	-25 °C
	Equipment heat dissipation, current-dependent Pvid	0 W
	Heat dissipation capacity Pdiss	0 W
	Heat dissipation per pole, current-dependent Pvid	0.11 W
	Number of contacts (change-over contacts)	0
	Number of contacts (normally closed contacts)	1
	Number of contacts (normally open contacts)	1
	Number of switches (fault signal)	0
	Connection type	Screw connection
	Mounting method	Front fastening
	Model	Top mounting
	Lamp holder	None
	Static heat dissipation, non-current-dependent Pvs	0 W
	Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V	6 A
	Rated operational current for specified heat dissipation (In)	6 A
