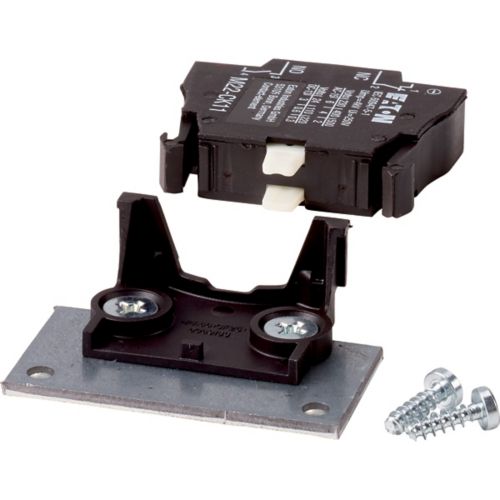

AUX1NO+1NCDMV160N Sigortasız Yük Ayırıcı Aksesuarı: Yardımcı Kontak

Şalt Ürünler / Eaton / Kompakt Devre Kesiciler (MCCB)

AUX1NO+1NCDMV160N Sigortasız Yük Ayırıcı Aksesuarı: Yardımcı Kontak 1NA+1NK - DMV160N

Ürün Kodu : Y8-1314398

..: Stokta Mevcut :..

33,02 €

Favorilerime Ekle

Ürün Açıklaması

Y8-1314398 - AUX1NO+1NCDMV160N Sigortasız Yük Ayırıcı Aksesuarı: Yardımcı Kontak 1NA+1NK - DMV160N


Barkod	:	Y8-1314398
Oem	:	Y8-1314398
MPN	:	1314398

SKU	1314398 Model Kodu: AUX1NO+1NCDMV160N
descriptionLabel	Eaton DMV Auxiliary contact, 1N/O+1N/C for DMV160N part no.
General specifications
	Product Name	Eaton DMV Accessory Auxiliary contact
	Catalog Number	1314398
	EAN	8711426843141
	Product Length/Depth	190 mm
	Product Height	15 mm
	Product Width	100 mm
	Product Weight	0.04 kg
	Compliances	CE
	Catalog Notes	Switching duty 6 A, 230 V AC
	Model Code	AUX1NO+1NCDMV160N
Features & Functions
	Electric connection type	Screw connection
	Fitted with:	2 auxiliary contacts per DMV, mountable
General information
	Accessories	Connection materials included with supplied equipment.
	Model	Top mounting
	Mounting method	Front fastening
	Type	Auxiliary contact
Climatic environmental conditions
	Ambient operating temperature - min	-25 °C
	Ambient operating temperature - max	50 °C
Electrical rating
	Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V	6 A
Contacts
	Number of contacts (change-over contacts)	0
	Number of contacts (normally closed contacts)	1
	Number of contacts (normally open contacts)	1
Design verification
	Equipment heat dissipation, current-dependent Pvid	0 W
	Heat dissipation capacity Pdiss	0 W
	Heat dissipation per pole, current-dependent Pvid	0.11 W
	Rated operational current for specified heat dissipation (In)	6 A
	Static heat dissipation, non-current-dependent Pvs	0 W
	10.2.2 Corrosion resistance	Meets the product standard's requirements.
	10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
	10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
	10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
	10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard's requirements.
	10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.7 Inscriptions	Meets the product standard's requirements.
	10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
	10.4 Clearances and creepage distances	Meets the product standard's requirements.
	10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
	10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
	10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
	10.8 Connections for external conductors	Is the panel builder's responsibility.
	10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
	10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
	10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
	10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
	10.11 Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.12 Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
