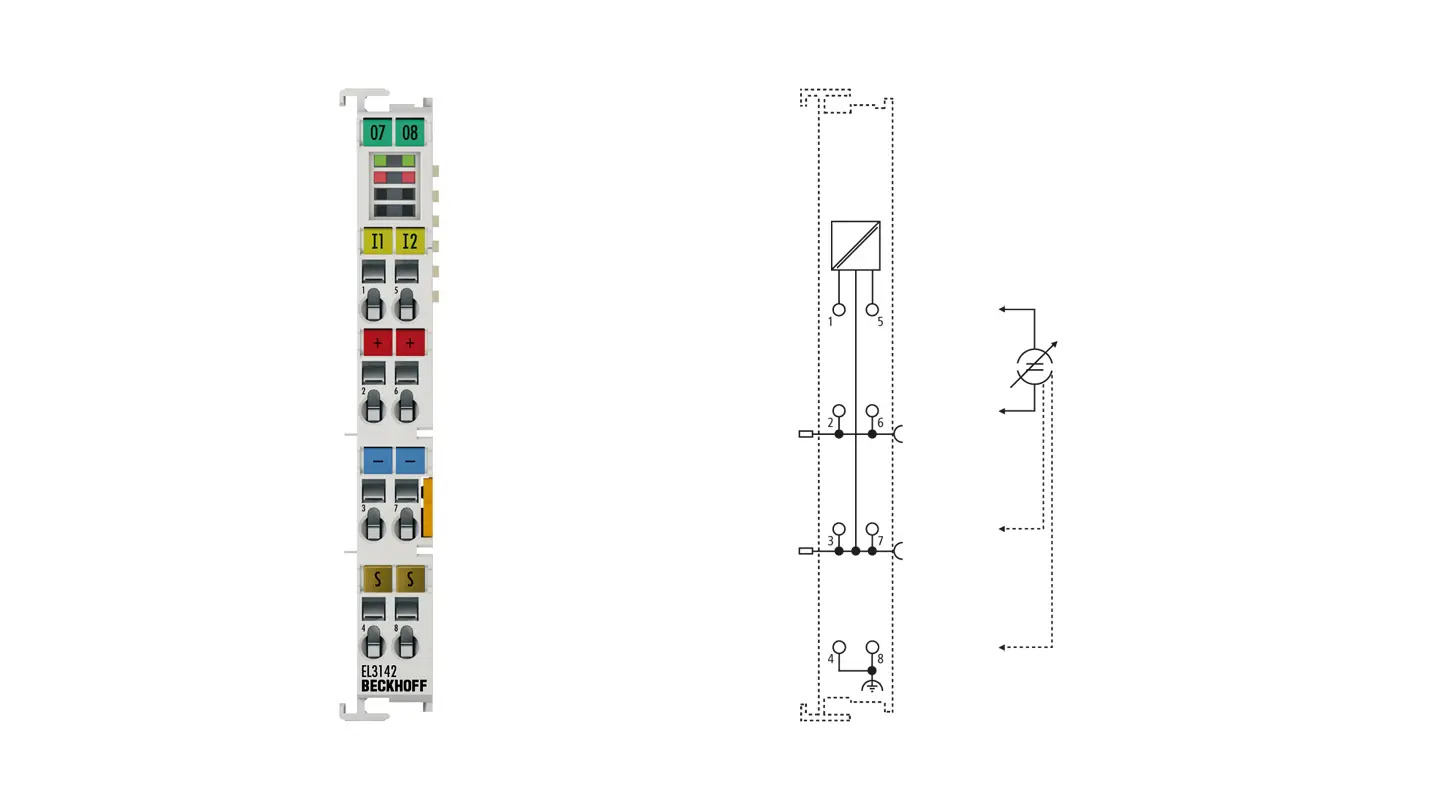

BECKHOFF EL3142 ETHERCAT TERMINAL 2-CHANNEL ANALOG INPUT (2.EL)

Ürün Kodu : EL3142

..: Stokta Mevcut :..

250,00 €

Favorilerime Ekle

Number of inputs	2 (single-ended)
Power supply	via the E-bus
Signal current	0…20 mA
Oversampling factor	–
Input signal bandwidth	see input filter
Distributed clocks	yes
Distributed clock precision	<< 1 µs
Internal resistance	typ. 85 Ω + diode voltage
Input filter limit frequency	5 kHz
Dielectric strength	max. 30 V
Conversion time	~ 60 µs (fast mode ~ 40 µs)
Resolution	16 bit (incl. sign)
Measurement error/uncertainty	< ±0.3% (relative to full scale value)
Electrical isolation	500 V (E-bus/signal voltage)
Current consumption E-bus	typ. 170 mA
Current consumption power contacts	–
Bit width in the process image	inputs: 8 byte
Special features	standard and compact process image, activatable FIR/IIR filters, limit value monitoring
Weight	approx. 60 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Plug-in wiring level	for all ESxxxx terminals
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, CCC, UL, ATEX, IECEx
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc

Henüz bir yorum eklenmedi!
