CODMV160N Sigortasız Yük Ayırıcı Aksesuarı: Enversör Çalıştırma

Şalt Ürünler / Eaton / Kompakt Devre Kesiciler (MCCB)

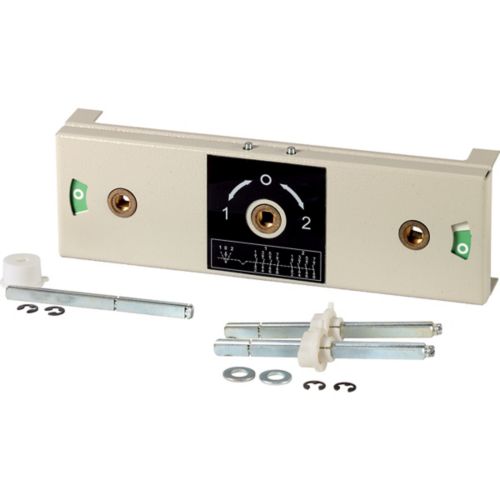

CODMV160N Sigortasız Yük Ayırıcı Aksesuarı: Enversör Çalıştırma Mekanizması (1-0-2) - DMV160N

Ürün Kodu : Y8-1314314

..: Stokta Mevcut :..

178,40 €

Favorilerime Ekle

Ürün Açıklaması

Y8-1314314 - CODMV160N Sigortasız Yük Ayırıcı Aksesuarı: Enversör Çalıştırma Mekanizması (1-0-2) - DMV160N


Barkod	:	Y8-1314314
Oem	:	Y8-1314314
MPN	:	1314314

SKU	1314314 Model Kodu: CODMV160N
descriptionLabel	Eaton DMV Change-Over Mechanism, for 2xDMVN160N
General specifications
	Product Name	Eaton DMV Accessory Change-over mechanism
	Catalog Number	1314314
	EAN	8711426103498
	Product Length/Depth	275 mm
	Product Height	50 mm
	Product Width	90 mm
	Product Weight	0.9 kg
	Compliances	CE
	Catalog Notes	Changeover switch 1 - 0 - 2
	Model Code	CODMV160N
Ürün teknik özellikleri
	Type	Changeover mechanism
	Accessories	Without switch, drive shaft, and rotary handle.
	10.10 Temperature rise	Not applicable.
	10.11 Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.12 Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
	10.2.2 Corrosion resistance	Meets the product standard's requirements.
	10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
	10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
	10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
	10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard's requirements.
	10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.7 Inscriptions	Meets the product standard's requirements.
	10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
	10.4 Clearances and creepage distances	Meets the product standard's requirements.
	10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
	10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
	10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
	10.8 Connections for external conductors	Is the panel builder's responsibility.
	10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
	10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
	10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
	Accessory/spare part type	Converter
	Ambient operating temperature - max	55 °C
	Ambient operating temperature - min	-25 °C
	Equipment heat dissipation, current-dependent Pvid	0 W
	Heat dissipation capacity Pdiss	0 W
	Heat dissipation per pole, current-dependent Pvid	0 W
	Rated operational current for specified heat dissipation (In)	0 A
	Static heat dissipation, non-current-dependent Pvs	0 W
