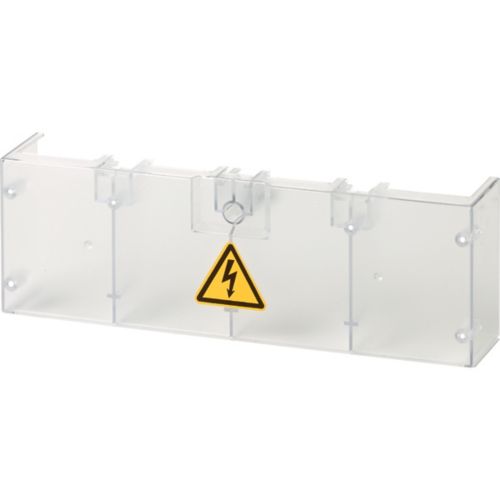

COVERDMV630N/1000N Sigortasız Yük Ayırıcı Aksesuarı: Şeffaf Terminal

Şalt Ürünler / Eaton / Kompakt Devre Kesiciler (MCCB)

COVERDMV630N/1000N Sigortasız Yük Ayırıcı Aksesuarı: Şeffaf Terminal Koruma Kapağı - DMV630N,1000N

Ürün Kodu : Y8-1314830

..: Stokta Mevcut :..

41,26 €

Favorilerime Ekle

Ürün Açıklaması

Y8-1314830 - COVERDMV630N/1000N Sigortasız Yük Ayırıcı Aksesuarı: Şeffaf Terminal Koruma Kapağı - DMV630N,1000N


Barkod	:	Y8-1314830
Oem	:	Y8-1314830
MPN	:	1314830

SKU	1314830 Model Kodu: COVERDMV630N/1000N
descriptionLabel	Eaton DMV Terminal shroud, for DMV630N/1000N
General specifications
	Product Name	Eaton DMV Accessory Terminal shroud
	Catalog Number	1314830
	EAN	8711426641761
	Product Length/Depth	385 mm
	Product Height	50 mm
	Product Width	190 mm
	Product Weight	0.107 kg
	Compliances	CE
	Model Code	COVERDMV630N/1000N
Features & Functions
	Color	Transparent
	Fitted with:	Connection materials
General information
	Accessories	Connection materials included with supplied equipment.
	Accessory/spare part type	Cover
	Type	Terminal cover
Climatic environmental conditions
	Ambient operating temperature - min	-25 °C
	Ambient operating temperature - max	55 °C
Design verification
	Equipment heat dissipation, current-dependent Pvid	0 W
	Heat dissipation capacity Pdiss	0 W
	Heat dissipation per pole, current-dependent Pvid	0 W
	Rated operational current for specified heat dissipation (In)	0 A
	Static heat dissipation, non-current-dependent Pvs	0 W
	10.2.2 Corrosion resistance	Meets the product standard's requirements.
	10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
	10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
	10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
	10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard's requirements.
	10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.7 Inscriptions	Meets the product standard's requirements.
	10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
	10.4 Clearances and creepage distances	Meets the product standard's requirements.
	10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
	10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
	10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
	10.8 Connections for external conductors	Is the panel builder's responsibility.
	10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
	10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
	10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
	10.10 Temperature rise	Not applicable.
	10.11 Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.12 Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
