| SKU |
6098956 Model Kodu: DDC-1250/2 |
|
| descriptionLabel |

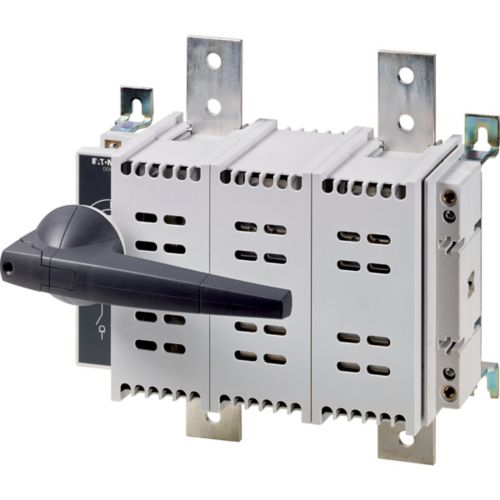

Eaton DDC DC switch disconnector, 1250 A, 2 pole, 1 N/O, 1 N/C, with grey knob, service distribution board mounting |
|
| General specifications |
|
|
| |
Product Name |
Eaton DDC Insulated enclosure |
| |
Catalog Number |
6098956 |
| |
EAN |
8711426212800 |
| |
Product Length/Depth |
345 mm |
| |
Product Height |
160 mm |
| |
Product Width |
230 mm |
| |
Product Weight |
14 kg |
| |
Certifications |
CE IEC/EN 60947 RoHS IEC/EN 60947-3 VDE 0660 IEC/EN 60204 |
| |
Catalog Notes |
Rated Short-time Withstand Current (Icw) for a time of 1 second |
| |
Model Code |
DDC-1250/2 |
| Features & Functions |
|
|
| |
Actuator color |
Gray |
| |
Actuator type |
Long turning handle |
| |
Features |
Version as main switch Version as maintenance-/service switch |
| |
Fitted with: |
Gray knob |
| |
Functions |
Interlockable |
| |
Number of poles |
Two-pole |
| General information |
|
|
| |
Accessories |
Auxiliary contact fitted by user. |
| |
Degree of protection |
NEMA Other |
| |
Degree of protection (front side) |
IP20 |
| |
Lifespan, mechanical |
5,000 Operations |
| |
Mounting method |
Service distribution board mounting |
| |
Mounting position |
As required |
| |
Overvoltage category |
III |
| |
Pollution degree |
3 |
| |
Product Category |
DC switch-disconnectorMain switch |
| |
Rated impulse withstand voltage (Uimp) |
12000 V |
| |
Suitable for |
Ground mounting |
| Climatic environmental conditions |
|
|
| |
Ambient operating temperature - min |
-25 °C |
| |
Ambient operating temperature - max |
55 °C |
| |
Ambient storage temperature - min |
-30 °C |
| |
Ambient storage temperature - max |
80 °C |
| Terminal capacities |
|
|
| |
Terminal capacity |
2 x (80 x 5) mm² , Flat conductor connection with busbars |
| |
Screw size |
M12 (2 x), Terminal screw |
| |
Tightening torque |
28 Nm, Screw terminals |
| Electrical rating |
|
|
| |
Rated operational current (Ie) at DC-21B, 1000 V |
1250 A |
| |
Rated operational current (Ie) at DC-21B, 480 V |
1250 A |
| |
Rated operational current (Ie) at DC-21B, 600 V |
1250 A |
| |
Rated uninterrupted current (Iu) |
1250 A |
| |
Uninterrupted current |
Rated uninterrupted current Iu is specified for max. cross-section. |
| |
Rated insulation voltage (Ui) |
1200 V |
| Short-circuit rating |
|
|
| |
Rated short-circuit making capacity (Icm) |
54.5 kAeff |
| |
Rated short-time withstand current (Icw) |
25 kA 25 kA, Contacts, 1 second |
| Contacts |
|
|
| |
Number of auxiliary contacts (change-over contacts) |
0 |
| |
Number of auxiliary contacts (normally closed contacts) |
1 |
| |
Number of auxiliary contacts (normally open contacts) |
1 |
| Design verification |
|
|
| |
Equipment heat dissipation, current-dependent Pvid |
83 W |
| |
Heat dissipation capacity Pdiss |
0 W |
| |
Heat dissipation per pole, current-dependent Pvid |
83 W |
| |
Rated operational current for specified heat dissipation (In) |
1250 A |
| |
Static heat dissipation, non-current-dependent Pvs |
0 W |
| |
10.2.2 Corrosion resistance |
Meets the product standard's requirements. |
| |
10.2.3.1 Verification of thermal stability of enclosures |
Meets the product standard's requirements. |
| |
10.2.3.2 Verification of resistance of insulating materials to normal heat |
Meets the product standard's requirements. |
| |
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects |
Meets the product standard's requirements. |
| |
10.2.4 Resistance to ultra-violet (UV) radiation |
Meets the product standard's requirements. |
| |
10.2.5 Lifting |
Does not apply, since the entire switchgear needs to be evaluated. |
| |
10.2.6 Mechanical impact |
Does not apply, since the entire switchgear needs to be evaluated. |
| |
10.2.7 Inscriptions |
Meets the product standard's requirements. |
| |
10.3 Degree of protection of assemblies |
Does not apply, since the entire switchgear needs to be evaluated. |
| |
10.4 Clearances and creepage distances |
Meets the product standard's requirements. |
| |
10.5 Protection against electric shock |
Does not apply, since the entire switchgear needs to be evaluated. |
| |
10.6 Incorporation of switching devices and components |
Does not apply, since the entire switchgear needs to be evaluated. |
| |
10.7 Internal electrical circuits and connections |
Is the panel builder's responsibility. |
| |
10.8 Connections for external conductors |
Is the panel builder's responsibility. |
| |
10.9.2 Power-frequency electric strength |
Is the panel builder's responsibility. |
| |
10.9.3 Impulse withstand voltage |
Is the panel builder's responsibility. |
| |
10.9.4 Testing of enclosures made of insulating material |
Is the panel builder's responsibility. |
| |
10.10 Temperature rise |
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| |
10.11 Short-circuit rating |
Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| |
10.12 Electromagnetic compatibility |
Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| |
10.13 Mechanical function |
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
