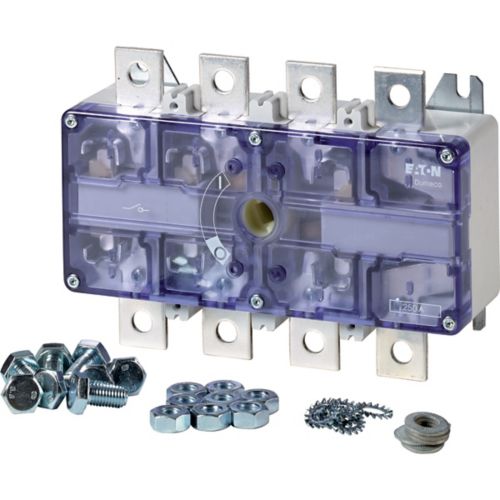

DMV-250N/4 Sigortasız Yük Ayırıcı 4x250 (kurma kolu dahil değil)

Şalt Ürünler / Eaton / Kompakt Devre Kesiciler (MCCB)

DMV-250N/4 Sigortasız Yük Ayırıcı 4x250 (kurma kolu dahil değil)

Ürün Kodu : Y8-1814410

..: Stokta Mevcut :..

289,90 €

Favorilerime Ekle

Ürün Açıklaması

Y8-1814410 - DMV-250N/4 Sigortasız Yük Ayırıcı 4x250 (kurma kolu dahil değil)


Barkod	:	Y8-1814410
Oem	:	Y8-1814410
MPN	:	1814410

SKU	1814410 Model Kodu: DMV-250N/4
descriptionLabel	Eaton DMV Switch-disconnector, DMV, 250 A, 4 pole, Stop Function optional, Without rotary handle and drive shaft
General specifications
	Product Name	Eaton DMV Switch-disconnector
	Catalog Number	1814410
	EAN	8711426104266
	Product Length/Depth	63 mm
	Product Height	135 mm
	Product Width	205 mm
	Product Weight	1.705 kg
	Certifications	CE EAC IEC/EN 60947-3 Lloyds IEC/EN 60204 RoHS KEMA VDE 0660 IEC/EN 60947
	Model Code	DMV-250N/4
Features & Functions
	Features	Version as emergency stop installation
	Functions	Optional Stop Function
	Number of poles	Four-pole
General information
	Accessories	Auxiliary contact fitted by user.Connection materials included with supplied equipment.
	Actuator color	Other
	Actuator type	Other
	Degree of protection	NEMA Other
	Degree of protection (front side)	IP20
	Lifespan, mechanical	10,000 Operations
	Mounting method	Surface mounting
	Mounting position	As required
	Overvoltage category	III
	Pollution degree	3
	Product Category	Main switchSwitch-disconnector
	Rated impulse withstand voltage (Uimp)	8000 V
	Safety parameter (EN ISO 13849-1)	B10d values as per EN ISO 13849-1, table C.1
	Suitable for	Ground mounting
Climatic environmental conditions
	Ambient operating temperature - min	-25 °C
	Ambient operating temperature - max	55 °C
	Ambient storage temperature - min	-30 °C
	Ambient storage temperature - max	80 °C
Terminal capacities
	Screw size	M8 x 20, Terminal screw
	Tightening torque	14 Nm, Screw terminals
Electrical rating
	Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)	2000 A
	Rated breaking capacity at 500 V (cos phi to IEC 60947-3)	1760 A
	Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)	1120 A
	Rated insulation voltage (Ui)	1000 V
	Rated operational current (Ie) at AC-21, 400 V, 415 V	250 A
	Rated operational current (Ie) at AC-21, 500 V	250 A
	Rated operational current (Ie) at AC-21, 690 V	250 A
	Rated operational current (Ie) at AC-22, 380 V, 400 V, 415 V	250 A
	Rated operational current (Ie) at AC-22, 500 V	250 A
	Rated operational current (Ie) at AC-22, 690 V	250 A
	Rated operational current (Ie) at AC-23A, 400 V, 415 V	250 A
	Rated operational current (Ie) at AC-23A, 500 V	220 A
	Rated operational current (Ie) at AC-23A, 690 V	140 A
	Rated operational power at AC-23A, 400 V, 50 Hz	140 kW
	Rated operational power at AC-23A, 500 V, 50 Hz	160 kW
	Rated operational power at AC-23A, 690 V, 50 Hz	132 kW
	Rated operational voltage (Ue) at AC - max	690 V
	Rated uninterrupted current (Iu)	250 A
	Uninterrupted current	Rated uninterrupted current Iu is specified for max. cross-section.
Short-circuit rating
	Breaking current	33 kA (at In = 250) 40 kA (at In = 500)
	Let-through energy	Max. 380 kA²s (at In = 250) Max. 1700 kA²s (at In = 500)
	Rated conditional short-circuit current (Iq)	100 kA 50 kA at In = 500
	Rated short-time withstand current (Icw)	12 kA, Contacts, 1 second 12 kA
	Short-circuit protection rating	500/250, Fuse, Contacts
Contacts
	Number of auxiliary contacts (change-over contacts)	0
	Number of auxiliary contacts (normally closed contacts)	0
	Number of auxiliary contacts (normally open contacts)	0
Design verification
	Equipment heat dissipation, current-dependent Pvid	0 W
	Heat dissipation capacity Pdiss	0 W
	Heat dissipation per pole, current-dependent Pvid	3.75 W
	Rated operational current for specified heat dissipation (In)	250 A
	Static heat dissipation, non-current-dependent Pvs	0 W
	10.2.2 Corrosion resistance	Meets the product standard's requirements.
	10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
	10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
	10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
	10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard's requirements.
	10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.7 Inscriptions	Meets the product standard's requirements.
	10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
	10.4 Clearances and creepage distances	Meets the product standard's requirements.
	10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
	10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
	10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
	10.8 Connections for external conductors	Is the panel builder's responsibility.
	10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
	10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
	10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
	10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
	10.11 Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.12 Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
