DMV-3150/4/M6/2HI11/K6-PG Sigortasız Yük Ayırıcı 4x3150 (kurma kolu

Şalt Ürünler / Eaton / Kompakt Devre Kesiciler (MCCB)

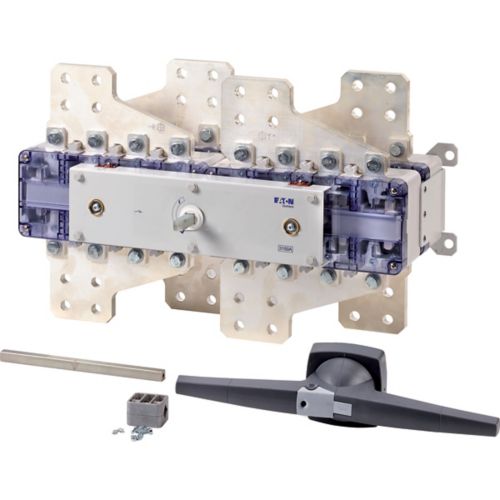

DMV-3150/4/M6/2HI11/K6-PG Sigortasız Yük Ayırıcı 4x3150 (kurma kolu dahil)

Ürün Kodu : Y8-6084846

..: Stokta Mevcut :..

6.891,00 €

Favorilerime Ekle

Ürün Açıklaması

Y8-6084846 - DMV-3150/4/M6/2HI11/K6-PG Sigortasız Yük Ayırıcı 4x3150 (kurma kolu dahil)


Barkod	:	Y8-6084846
Oem	:	Y8-6084846
MPN	:	6084846

SKU	6084846 Model Kodu: DMV-3150/4/M6/2HI11/K6-PG
descriptionLabel	Eaton DMV Switch-disconnector, 4-pole, 690 V, Long turning handle, NEMA Other
General specifications
	Product Name	Eaton DMV Switch-disconnector
	Catalog Number	6084846
	EAN	8711426636934
	Product Length/Depth	300 mm
	Product Height	377 mm
	Product Width	630 mm
	Product Weight	42 kg
	Certifications	RoHS KEMA Lloyds VDE 0660 EAC IEC/EN 60947 IEC/EN 60204 CE IEC/EN 60947-3
	Model Code	DMV-3150/4/M6/2HI11/K6-PG
Features & Functions
	Features	Version as main switch
	Fitted with:	Gray rotary handle and drive shaft
	Functions	Interlockable
	Number of poles	Four-pole
General information
	Accessories	Connection materials included with supplied equipment.
	Actuator color	Gray
	Actuator type	Long turning handle
	Degree of protection	NEMA Other
	Degree of protection (front side)	IP20
	Lifespan, mechanical	5,000 Operations
	Mounting method	Surface mounting
	Mounting position	As required
	Overvoltage category	III
	Pollution degree	3
	Product Category	Main switchSwitch-disconnector
	Rated impulse withstand voltage (Uimp)	12000 V
	Safety parameter (EN ISO 13849-1)	B10d values as per EN ISO 13849-1, table C.1
	Suitable for	Ground mounting Intermediate mounting
Climatic environmental conditions
	Ambient operating temperature - min	-25 °C
	Ambient operating temperature - max	55 °C
	Ambient storage temperature - min	-30 °C
	Ambient storage temperature - max	80 °C
Terminal capacities
	Screw size	M12 x 50 (2 x), Terminal screw
	Tightening torque	40 Nm, Screw terminals
Electrical rating
	Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)	10000 A
	Rated breaking capacity at 500 V (cos phi to IEC 60947-3)	7272 A
	Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)	5040 A
	Rated insulation voltage (Ui)	1000 V
	Rated operational current (Ie) at AC-21, 400 V, 415 V	3150 A
	Rated operational current (Ie) at AC-21, 500 V	3150 A
	Rated operational current (Ie) at AC-21, 690 V	3150 A
	Rated operational power at AC-23A, 400 V, 50 Hz	1400 kW
	Rated operational power at AC-3, 380/400 V, 50 Hz	0 kW
	Rated operational voltage (Ue) at AC - max	690 V
	Rated uninterrupted current (Iu)	3150 A
	Uninterrupted current	Rated uninterrupted current Iu is specified for max. cross-section.
Short-circuit rating
	Rated conditional short-circuit current (Iq)	0 kA
	Rated short-time withstand current (Icw)	65 kA 65 kA, Contacts, 1 second
Contacts
	Number of auxiliary contacts (change-over contacts)	0
	Number of auxiliary contacts (normally closed contacts)	1
	Number of auxiliary contacts (normally open contacts)	1
Design verification
	Equipment heat dissipation, current-dependent Pvid	108.8 W
	Heat dissipation capacity Pdiss	0 W
	Heat dissipation per pole, current-dependent Pvid	86.2 W
	Rated operational current for specified heat dissipation (In)	3150 A
	Static heat dissipation, non-current-dependent Pvs	0 W
	10.2.2 Corrosion resistance	Meets the product standard's requirements.
	10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
	10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
	10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
	10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard's requirements.
	10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.7 Inscriptions	Meets the product standard's requirements.
	10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
	10.4 Clearances and creepage distances	Meets the product standard's requirements.
	10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
	10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
	10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
	10.8 Connections for external conductors	Is the panel builder's responsibility.
	10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
	10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
	10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
	10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
	10.11 Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.12 Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
