1814413 Model Kodu: DMV-400N/4 |
|
| descriptionLabel |

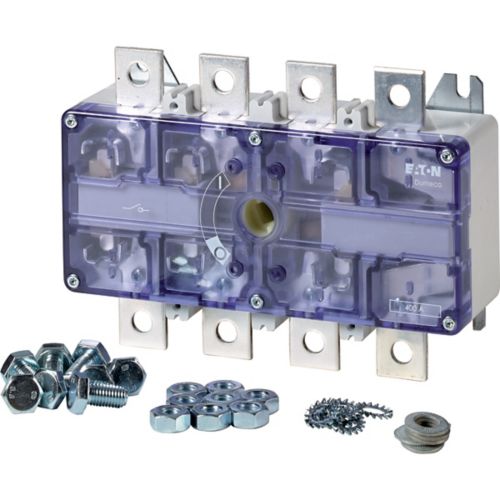

Eaton DMV Switch-disconnector, DMV, 400 A, 4 pole, Stop Function optional, Without rotary handle and drive shaft |
|
| General specifications |
|
|
| |
Product Name |
Eaton DMV Switch-disconnector |
| |
Catalog Number |
1814413 |
| |
EAN |
8711426422711 |
| |
Product Length/Depth |
63 mm |
| |
Product Height |
146 mm |
| |
Product Width |
205 mm |
| |
Product Weight |
1.75 kg |
| |
Certifications |
KEMA IEC/EN 60947 EAC VDE 0660 RoHS IEC/EN 60947-3 IEC/EN 60204 Lloyds CE |
| |
Model Code |
DMV-400N/4 |
| Features & Functions |
|
|
| |
Features |
Version as emergency stop installation |
| |
Functions |
Optional Stop Function |
| |
Number of poles |
Four-pole |
| General information |
|
|
| |
Accessories |
Auxiliary contact fitted by user.Connection materials included with supplied equipment. |
| |
Actuator color |
Other |
| |
Actuator type |
Other |
| |
Degree of protection |
NEMA Other |
| |
Degree of protection (front side) |
IP20 |
| |
Lifespan, mechanical |
10,000 Operations |
| |
Mounting method |
Surface mounting |
| |
Mounting position |
As required |
| |
Overvoltage category |
III |
| |
Pollution degree |
3 |
| |
Product Category |
Main switchSwitch-disconnector |
| |
Rated impulse withstand voltage (Uimp) |
8000 V |
| |
Safety parameter (EN ISO 13849-1) |
B10d values as per EN ISO 13849-1, table C.1 |
| |
Suitable for |
Ground mounting |
| Climatic environmental conditions |
|
|
| |
Ambient operating temperature - min |
-25 °C |
| |
Ambient operating temperature - max |
55 °C |
| |
Ambient storage temperature - min |
-30 °C |
| |
Ambient storage temperature - max |
80 °C |
| Terminal capacities |
|
|
| |
Screw size |
M10 x 20, Terminal screw |
| |
Tightening torque |
28 Nm, Screw terminals |
| Electrical rating |
|
|
| |
Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3) |
2664 A |
| |
Rated breaking capacity at 500 V (cos phi to IEC 60947-3) |
2032 A |
| |
Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3) |
1120 A |
| |
Rated insulation voltage (Ui) |
1000 V |
| |
Rated operational current (Ie) at AC-21, 400 V, 415 V |
400 A |
| |
Rated operational current (Ie) at AC-21, 500 V |
400 A |
| |
Rated operational current (Ie) at AC-21, 690 V |
400 A |
| |
Rated operational current (Ie) at AC-22, 380 V, 400 V, 415 V |
400 A |
| |
Rated operational current (Ie) at AC-22, 500 V |
400 A |
| |
Rated operational current (Ie) at AC-22, 690 V |
315 A |
| |
Rated operational current (Ie) at AC-23A, 400 V, 415 V |
333 A |
| |
Rated operational current (Ie) at AC-23A, 500 V |
254 A |
| |
Rated operational current (Ie) at AC-23A, 690 V |
140 A |
| |
Rated operational power at AC-23A, 400 V, 50 Hz |
180 kW |
| |
Rated operational power at AC-23A, 500 V, 50 Hz |
180 kW |
| |
Rated operational power at AC-23A, 690 V, 50 Hz |
132 kW |
| |
Rated operational voltage (Ue) at AC - max |
690 V |
| |
Rated uninterrupted current (Iu) |
400 A |
| |
Uninterrupted current |
Rated uninterrupted current Iu is specified for max. cross-section. |
| Short-circuit rating |
|
|
| |
Breaking current |
40 kA (at In = 500) 33 kA (at In = 250) |
| |
Let-through energy |
Max. 380 kA²s (at In = 250) Max. 1700 kA²s (at In = 500) |
| |
Rated conditional short-circuit current (Iq) |
50 kA at In = 500 100 kA |
| |
Rated short-time withstand current (Icw) |
12 kA 12 kA, Contacts, 1 second |
| |
Short-circuit protection rating |
500/250, Fuse, Contacts |
| Contacts |
|
|
| |
Number of auxiliary contacts (change-over contacts) |
0 |
| |
Number of auxiliary contacts (normally closed contacts) |
0 |
| |
Number of auxiliary contacts (normally open contacts) |
0 |
| Design verification |
|
|
| |
Equipment heat dissipation, current-dependent Pvid |
11.5 W |
| |
Heat dissipation capacity Pdiss |
0 W |
| |
Heat dissipation per pole, current-dependent Pvid |
9 W |
| |
Rated operational current for specified heat dissipation (In) |
400 A |
| |
Static heat dissipation, non-current-dependent Pvs |
0 W |
| |
10.2.2 Corrosion resistance |
Meets the product standard's requirements. |
| |
10.2.3.1 Verification of thermal stability of enclosures |
Meets the product standard's requirements. |
| |
10.2.3.2 Verification of resistance of insulating materials to normal heat |
Meets the product standard's requirements. |
| |
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects |
Meets the product standard's requirements. |
| |
10.2.4 Resistance to ultra-violet (UV) radiation |
Meets the product standard's requirements. |
| |
10.2.5 Lifting |
Does not apply, since the entire switchgear needs to be evaluated. |
| |
10.2.6 Mechanical impact |
Does not apply, since the entire switchgear needs to be evaluated. |
| |
10.2.7 Inscriptions |
Meets the product standard's requirements. |
| |
10.3 Degree of protection of assemblies |
Does not apply, since the entire switchgear needs to be evaluated. |
| |
10.4 Clearances and creepage distances |
Meets the product standard's requirements. |
| |
10.5 Protection against electric shock |
Does not apply, since the entire switchgear needs to be evaluated. |
| |
10.6 Incorporation of switching devices and components |
Does not apply, since the entire switchgear needs to be evaluated. |
| |
10.7 Internal electrical circuits and connections |
Is the panel builder's responsibility. |
| |
10.8 Connections for external conductors |
Is the panel builder's responsibility. |
| |
10.9.2 Power-frequency electric strength |
Is the panel builder's responsibility. |
| |
10.9.3 Impulse withstand voltage |
Is the panel builder's responsibility. |
| |
10.9.4 Testing of enclosures made of insulating material |
Is the panel builder's responsibility. |
| |
10.10 Temperature rise |
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| |
10.11 Short-circuit rating |
Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| |
10.12 Electromagnetic compatibility |
Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| |
10.13 Mechanical function |
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
