K2SAB Sigortasız Yük Ayırıcı Aksesuarı: Döner Kurma Kolu (Mavi) -

Şalt Ürünler / Eaton / Kompakt Devre Kesiciler (MCCB)

K2SAB Sigortasız Yük Ayırıcı Aksesuarı: Döner Kurma Kolu (Mavi) - DMV160N

Ürün Kodu : Y8-1818003

..: Stokta Mevcut :..

30,96 €

Favorilerime Ekle

Ürün Açıklaması

Y8-1818003 - K2SAB Sigortasız Yük Ayırıcı Aksesuarı: Döner Kurma Kolu (Mavi) - DMV160N


Barkod	:	Y8-1818003
Oem	:	Y8-1818003
MPN	:	1818003

SKU	1818003 Model Kodu: K2SAB

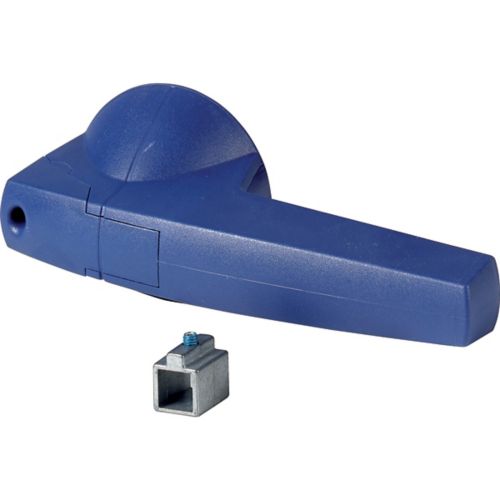

descriptionLabel	Eaton K2 Rotary handle, 6mm, direct mounting, blue
General specifications
	Product Name	Eaton K2 Accessory Handle
	Catalog Number	1818003
	EAN	8711426210158
	Product Length/Depth	195 mm
	Product Height	40 mm
	Product Width	115 mm
	Product Weight	0.045 kg
	Compliances	CE
	Model Code	K2SAB
Features & Functions
	Color	Other
General information
	Ambient operating temperature - min	-25 °C
	Ambient operating temperature - max	55 °C
	Degree of protection	NEMA Other
	Mounting method	Direct mounting
	Shaft diameter	6 x 6 mm
	Suitable for	Power circuit breaker Switch disconnector
	Switching angle	90 °
	Type	Rotary handle
Design verification
	Equipment heat dissipation, current-dependent Pvid	0 W
	Heat dissipation capacity Pdiss	0 W
	Heat dissipation per pole, current-dependent Pvid	0 W
	Rated operational current for specified heat dissipation (In)	0 A
	Static heat dissipation, non-current-dependent Pvs	0 W
	10.2.2 Corrosion resistance	Meets the product standard's requirements.
	10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
	10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
	10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
	10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard's requirements.
	10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.7 Inscriptions	Meets the product standard's requirements.
	10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
	10.4 Clearances and creepage distances	Meets the product standard's requirements.
	10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
	10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
	10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
	10.8 Connections for external conductors	Is the panel builder's responsibility.
	10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
	10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
	10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
	10.10 Temperature rise	Not applicable.
	10.11 Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.12 Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
