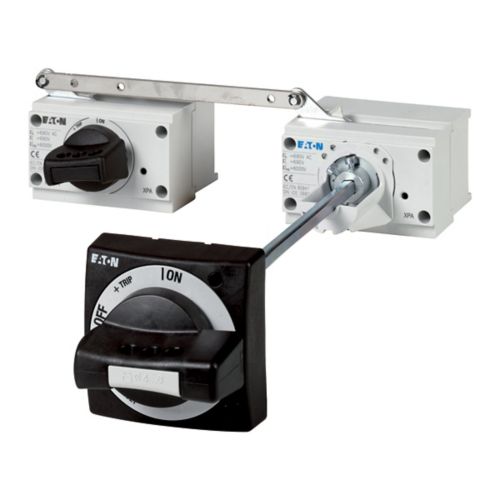

PN1-XPA Kompakt Tip Yük Ayırıcı Aksesuarı: Paralelleme Mekanizması PN1

Şalt Ürünler / Eaton / Kompakt Devre Kesiciler (MCCB)

PN1-XPA Kompakt Tip Yük Ayırıcı Aksesuarı: Paralelleme Mekanizması PN1

Ürün Kodu : Y7-283471

..: Stokta Mevcut :..

248,90 €

Favorilerime Ekle

Ürün Açıklaması

Y7-283471 - PN1-XPA Kompakt Tip Yük Ayırıcı Aksesuarı: Paralelleme Mekanizması PN1


Barkod	:	Y7-283471
Oem	:	Y7-283471
MPN	:	283471

SKU	283471 Model Kodu: PN1-XPA
descriptionLabel	Eaton Moeller series NZM - Molded Case Circuit Breaker. Paralleling mechanism, 1
General specifications
	Product Name	Eaton Moeller series NZM mounting accessory
	Catalog Number	283471
	EAN	4015082834715
	Product Length/Depth	185 mm
	Product Height	50 mm
	Product Width	80 mm
	Product Weight	0.9 kg
	Compliances	IEC RoHS conform
	Model Code	PN1-XPA
Delivery program
	Type	AccessoryParalleling mechanism
	Features	Lockable
	Special features	Simultaneous actuation of 2 PN switch-disconnectors of the same type mounted side-by-sidenot UL/CSA approved
	Frame	PN1
	Fitted with:	Padlock
	Suitable for	Switch disconnector
	Used with	PN1(-4) + PN1(-4)
Technical Data - Mechanical
	Color	Black
	Degree of protection / NEMA enclosure type	Other
	Special features	Simultaneous actuation of 2 PN switch-disconnectors of the same type mounted side-by-sidenot UL/CSA approved
Design verification as per IEC/EN 61439
	10.2.2 Corrosion resistance	Meets the product standard's requirements.
	10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
	10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
	10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
	10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard's requirements.
	10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
	10.2.7 Inscriptions	Meets the product standard's requirements.
	10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
	10.4 Clearances and creepage distances	Meets the product standard's requirements.
	10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
	10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
	10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
	10.8 Connections for external conductors	Is the panel builder's responsibility.
	10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
	10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
	10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
	10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
	10.11 Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.12 Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
	10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
